KSA 9355 Export Model
Premium harvester with inbuilt Air Conditioning Cabin.
KSA 9355 Export Model
AC Cabin Combine Harvester • Self Propelled Combine Harvester
AC Cabin Harvester
Multi Crop Harvester with an Air-Conditioned Cabin
The KSA 9355 Export Model from KS GROUP MALERKOTLA is an AC Cabin Combine Harvester designed for wheat, paddy, soybean, sunflower, pulses and gram. This Self Propelled Combine Harvester features a 101 HP Ashok Leyland engine and straw walker separation. Explore this Multi Crop Harvester and contact our team for configuration and enquiries across India.
Operating as a robust multi crop harvester, this machine ensures clean grain separation and maximum output across wheat, paddy, soybean, and pulses. For complete residue management after harvest, pair it with our Paddy Straw Chopper.
- 101 HP Ashok Leyland 6-Cylinder Engine.
- Inbuilt Air-Conditioned Cabin for operator comfort.
- 14-Feet Cutter Bar with 4300 mm cutting width.
- Straw Walker Technology for thorough grain separation.
Product Overview
Key Features of KSA 9355 Export Model
Engineered for demanding harvesting operations and large agricultural fields.
101 HP Ashok Leyland Engine
Powered by a robust 6-cylinder engine designed to provide the performance required for heavy-duty harvesting, threshing and crop-handling.
Inbuilt AC Cabin
Enclosed air-conditioned operator cabin designed to improve comfort during long harvesting hours in hot, dusty and demanding field conditions.
14 Feet Cutter Bar
Features a 14-feet outer cutter bar (4300 mm cutting width) allowing the machine to cover a substantial crop area during each harvesting pass.
Straw Walker Technology
The Straw Walker system helps separate remaining grain from straw after threshing while allowing crop residue to continue through the system.
Power Steering
Equipped with Power Steering, helping provide easier steering, maneuvering and machine control during field operations and transportation.
Heavy-Duty Gear & Clutch
Incorporates a heavy-duty gear system and large clutch plates designed to handle demanding continuous commercial harvesting operations.
Operational Workflow
How the KSA 9355 Export Model Works
Working Steps
Crop Cutting & Feeding
The 14-feet cutter bar cuts the standing crop and transfers it from the header into the internal harvesting mechanism.
Threshing
The crop enters the threshing mechanism, where grains are separated from the harvested plant material.
Grain Separation & Cleaning
The Straw Walker system separates remaining grain, passing it through the cleaning system to remove unwanted material.
Collection & Discharge
Cleaned grain is collected for unloading, while remaining straw moves out of the harvesting system.
Suitable Crops
The KSA 9355 Export Model is a versatile machine suitable for commercial crop harvesting across different seasons.
Wheat
Paddy
Soybean
Sunflower
Gram
Pulses
Mustard
Benefits:
- Reduced Manual Labour: Mechanized harvesting replaces large manual teams.
- Faster Harvesting: Integrates cutting, threshing, and cleaning into one pass.
- Commercial Grade: Suitable for agricultural contractors and large fields.
Data Sheet
Technical Specifications
| Product Name | KSA 9355 Export Model |
|---|---|
| Machine Type | Self Propelled Multi Crop Combine Harvester |
| Harvester Type | Straw Walker |
| Engine | Ashok Leyland (6 Cylinder) |
| Engine Power | 101 HP |
| Chassis Size | 51 |
| Cutter Bar / Width | 14 Feet / 4300 mm |
| Overall Length | 8490 mm |
| Overall Width | 6335 mm |
| Overall Height | 3730 mm |
| Weight | 8950 kg |
| Steering & Cabin | Power Steering / Inbuilt Air-Conditioned Cabin |
| Drive Type | Self Propelled |
For a self-propelled option, explore our primary KS-9300 Combine Harvester.
Maintenance Recommendations
- Check engine oil, coolant, and air/fuel filters.
- Inspect cutter blades, gear, and alignment.
- Clean Straw Walker & check for wear.
- Check belt tension and inspect chains.
- Check tyre pressure and steering connections.
- Keep AC cabin filters clean.
- Lubricate required components regularly.
Safety Guidelines
- Read operator manual and inspect machine before starting.
- Ensure all guards and safety covers are fitted properly.
- Never perform maintenance or remove blockages while engine is running.
- Operate at suitable speeds and allow only trained operators.
Got Questions?
Frequently Asked Questions (FAQ)
The KSA 9355 Export Model is a self-propelled multi-crop combine harvester manufactured by KS GROUP MALERKOTLA, featuring an inbuilt AC cabin and designed for large-scale agricultural operations.
It is powered by a robust 101 HP, 6-cylinder Ashok Leyland engine that provides the performance required for heavy-duty harvesting, threshing and self-propelled drive.
The machine features a 14-feet cutter bar with a cutting width of 4300 mm, allowing it to cover a substantial crop area during each harvesting pass.
It is a multi-crop harvester designed for harvesting wheat, paddy, soybean, sunflower, gram, pulses, and mustard.
Yes, one of the major features of the Export Model is its enclosed, inbuilt air-conditioned operator cabin designed to provide a more comfortable working environment during extended harvesting operations.
Explore More
Related Harvesting Solutions

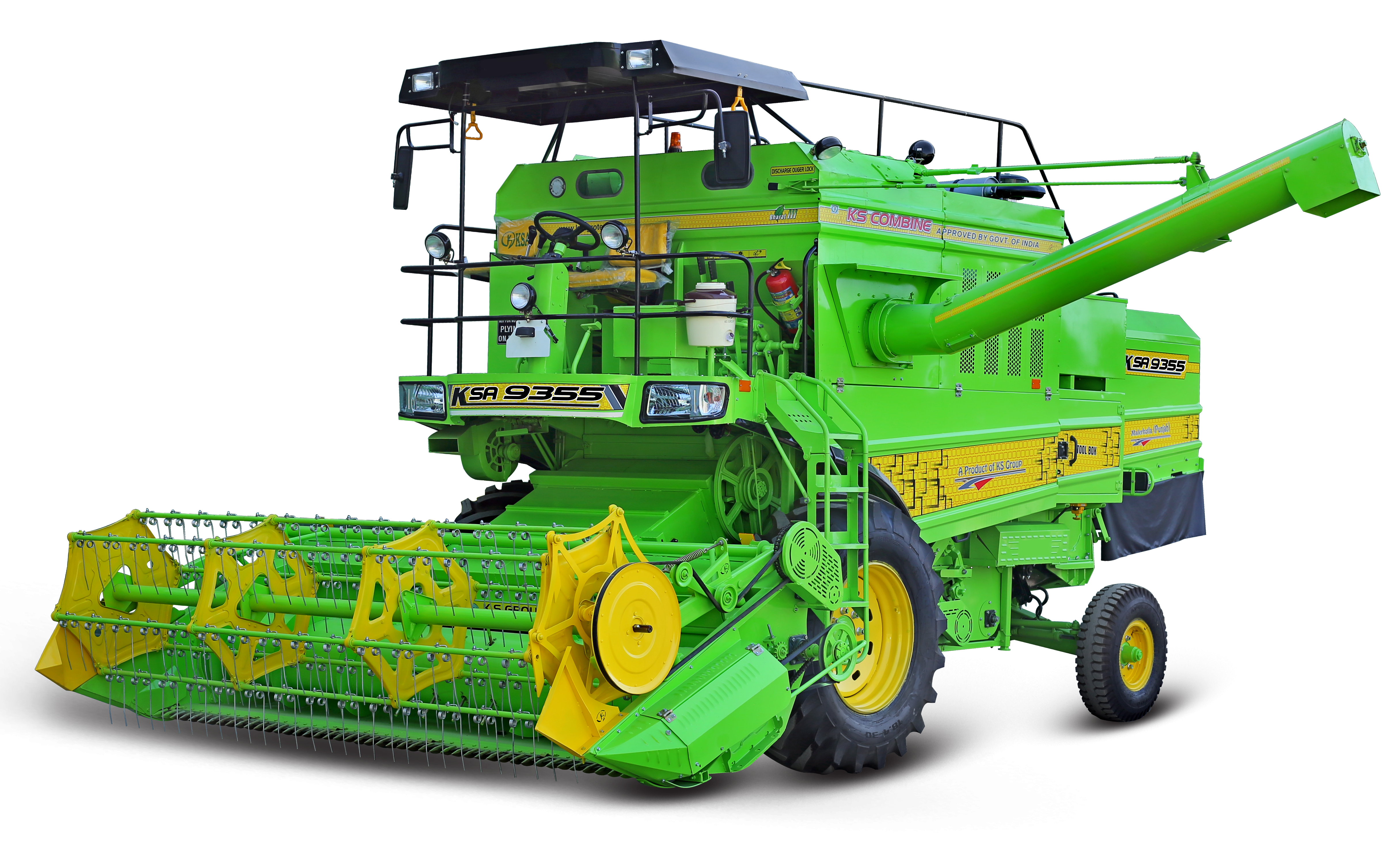

KS 9300 Multi Crop Harvester
Self-propelled multi-crop combine for maximum field efficiency.
Greengold 220 Combine Harvester
Heavy-duty self-propelled harvesting machine for large-scale farm productivity.
Harvest Large Fields Efficiently with the KSA 9355 Export Model.
Contact KS GROUP MALERKOTLA for product details, specifications, and purchase assistance.
